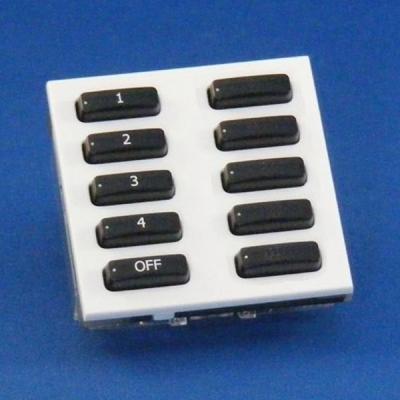

Rako Wired Lighting WCM-100 - 10 Button Frame and Insert Keypad with White Insert

	Rako Lighting WCM-100 - 10 Button Keypad Features
	Rako Lighting WCM-100 - 10 Button Keypad. Each button is fully programmable for preset light scene selection, all on/off, master raise lower, blinds control.
	Wired unit connection via RANET CAT5 bus-cable
	All buttons can have 3 programmable functions; 1) single push 2) push and hold 3) toggle (on/off). Buttons can run light scens, blind control, macros or sequences. Each button has programmable LED talk back functionality.
	Backlit buttons with LED tellback, to acknowlege light scene changes
	Ideal for new build or renovation projects were a wired lighting control system is required
	Use as part of a Mood Lighting scene setting configuration. Smooth cross fading between scenes
	10 Button White Insert requires single gang or double gang frame

	Advance Features
	Each buton is individually programmable using the Rako Rasoft Pro Software.
	Each button can recall; a light scene, control an individual channel, control whole house lights, or a macro function
	Each button can be assigned with 1 action; a short press/release or long press
	Each button can be assigned with 2 actions; 1 action for short press/release, and a second action with a long press
	Each buton can recall blind controls; open, close, stop

	Technical
Voltage	15V (supplied through RANET CAT5 bus-cable)
Back Box Type	BS Standard back boxes - 44mm deep
Size (H, W, D) mm	50 x 50 x 40
Communication	RANET Coded - CAT5 bus-cable
Address	256 room addresses, 16 light scenes per room, up to 255 light channels per room
Channels	System fully programmable using RASOFT Pro Software
Range	RANET Bus-cable range - 3Km
Order Code	Rako Lighting WCM-100 - 10 Button Keypad
