Rako Lighting WCM-030 - 3 Button Frame and Insert Keypad with Black Insert - Rako Lighting Controls | eu online shop

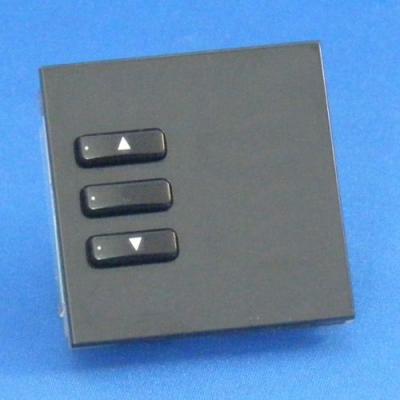

Rako Blind Controls WCM-030 - 3 Button Frame and Insert Keypad with Black Insert

	Rako Lighting WCM-030 - 3 Button Keypad Features
	Rako Lighting WCM-030 - 3 Button Keypad. Each button is fully programmable, but unit is designed for blinds control; raise, lower and stop
	Wired unit connection via RANET CAT5 bus-cable
	All buttons can have 3 programmable functions; 1) single push 2) push and hold 3) toggle (on/off). Buttons can run light scens, blind control, macros or sequences. Each button has programmable LED talk back functionality.
	Backlit buttons with LED tellback, to acknowlege light scene changes
	Ideal for new build or renovation projects were a wired lighting control system is required
	Use as part of a blinds control scene setting configuration.
	3 Button Black Insert requires single gang or double gang frame
	4 Finishes White Plastic Brushed Stainless Steel Polished Stainless Steel Polished Brass

	Technical
Voltage	15V (supplied through RANET CAT5 bus-cable)
Back Box Type	BS Standard back boxes - 44mm deep
Size (H, W, D) mm	50 x 50 x 40
Communication	RANET Coded - CAT5 bus-cable
Address	256 room addresses, 16 light scenes per room, up to 255 light channels per room
Channels	System fully programmable using RASOFT Pro Software
Range	RANET Bus-cable range - 3Km
Order Code	Rako Lighting WCM-030 - 3 Button Keypad
