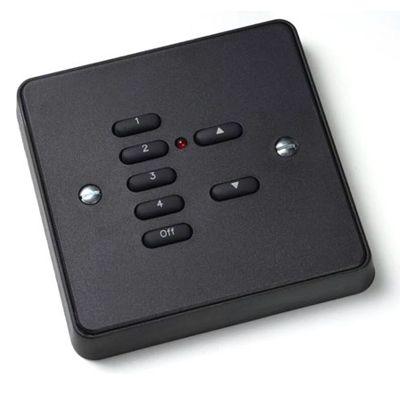

Rako Wireless Lighting RCP07-CX - 7 Button Keypad - Charcoal
Rako Wireless Lighting RCP07-CX - 7 Button Wireless Lighting Controlled Keypad Charcoal Grey Surround & Faceplate with flying lead for external power supply
| | Rako Wireless Lighting RCP07-WX - 7 Button Keypad Features |
 | Do not use on new projects
Sold as replacement only
Rako Wireless Lighting Control RCP07-WX - 7 Button Keypad - Charcoal. 4 preset scene selection and off plus master raise lower |
| Wired unit requiring additional Power Supply Unit - RAPSU |
| Use as part of a Mood Lighting scene setting configuration |
| Used in heavy use commercial locations |
| Smooth cross fading between scenes |
| Simple system configuration can be performed by non technical staff |
| Flush mounting to BS Standard back boxes |
| 12mm Deep surface mounting back box included in package |
| | Advance Features |
| The factory default 7 button keypad configuration is set for; 4 lightscens, off and raise lower. It is possible to programme these advance functions directly from the keypad. |
| Channel Mode - The default keypad mode is to select 4 lightscens, off and raise lower. It is possible to set the keypad to channel mode, that is to toggle on/off 4 individual light circuits , all off and raise lower for each circuit. |
| Power up mode - the default power up mode (after a power cut) is to set all lights on 100%. It is possible to select the following different power up modes - Lightscenes 1,2,3 or 4, all lights off, or last scene set |
| Whole House All Off - It is possible to set the off button on any 7 button keypad to act as a whole house all off control. Once enabled, just by holding the off button for 4 seconds, turns all the lights out in the house |
| Adjust Fade Rate - The default fade rate from Off to On is 2 seconds. It is possible to select a fade rate of 1, 4, or 10 seconds. |
| | Technical |
| Voltage | 12vdc Rako RAPSU Power Supply Required - see below |
| Back Box Type | BS Standard back box |
| Size (H, W, D) mm | 86 x 86 x 12 |
| Communication | RAKOM Coded FM Radio - 433.9MHz |
| Address | 256 house and 256 room addresses |
| Channels | Up to 15 per room using this controller for configuration |
| Channels | Up to 60 per room using RASOFT Pro Software for configuration |
| Range | Transmitting range of 15m in building (100m line of sight) |
| Order Code | Rako Wireless Lighting Keypad - RCP07-CX |
| | Package |
| Unit | 1 |
| Warranty | 12 Months |
| Delivery Time | Stock Item |
| | Options |
| Rako Wireless Lighting Control RCP07-CX - 7 Button Controller - available with and without power supply |
| Rako Wireless Lighting Control RCP07-CX - 7 Button Controller |
| Rako Wireless Lighting Control RCP07-CX - 7 Button Controller with PSU |
