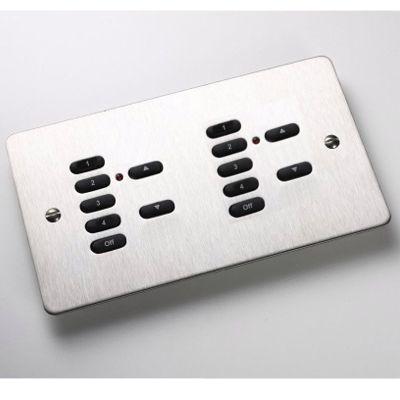

Rako Wireless Lighting RCP07-07 - Double Gang 7 plus 7 Button Keypad - Flat Metal Cover Plate
Rako Wireless Lighting RCP07-07 - Double Gang 7 & 7 Button Wireless Lighting Controlled Keypad - Flat Metal Cover Plate
| Rako Wireless Lighting RCP07-07 - Double Gang 7 plus 7 Button Keypad Features |
| Do not use on new projects Sold as replacement only Rako Wireless Lighting Control RCP07-07 - Double Gang 7 plus 7 Button Keypad - Flat Metal Plate. Combined Light Scenes and Blinds Control. |
| 7 Button Light Scene Keypad - 4 preset scene selection and off plus master raise lower |
| Second 7 Button Light Scene Keypad - 4 preset scene selection and off plus master raise lower |
| Wireless unit using lithium batteries - locate this any where in the room |
| Use as part of a Mood Lighting scene setting configuration |
| Simple to retro-fit to existing conventionally wired schemes |
| Smooth cross fading between scenes |
| Simple system configuration can be performed by non technical staff |
| Flush mounting only to BS Standard back boxes |
| Long battery life (in excess of 3 years), easily replaced by the user |
| 4 Finishes White Metal Brushed Stainless Steel Polished Stainless Steel Polished Brass
|
| Advance Features |
| The factory default 7 button keypad configuration is set for; 4 lightscens, off and raise lower. It is possible to programme these advance functions directly from the keypad. |
| Channel Mode - The default keypad mode is to select 4 lightscens, off and raise lower. It is possible to set the keypad to channel mode, that is to toggle on/off 4 individual light circuits , all off and raise lower for each circuit. |
| Power up mode - the default power up mode (after a power cut) is to set all lights on 100%. It is possible to select the following different power up modes - Lightscenes 1,2,3 or 4, all lights off, or last scene set |
| Whole House All Off - It is possible to set the off button on any 7 button keypad to act as a whole house all off control. Once enabled, just by holding the off button for 4 seconds, turns all the lights out in the house |
| Adjust Fade Rate - The default fade rate from Off to On is 2 seconds. It is possible to select a fade rate of 1, 4, or 10 seconds. |
| Technical |
Voltage | 6V (4 x 3V Lithium coin cells CR2016 ) |
Back Box Type | BS Standard double back box |
Size (H, W, D) mm | 86 x 146 x 12 |
Communication | RAKOM Coded FM Radio - 433.9MHz |
Address | 256 house and 256 room addresses |
Channels | Up to 15 per room using this controller for configuration |
Channels | Up to 60 per room using RASOFT Pro Software for configuration |
Range | Transmitting range of 15m in building (100m line of sight) |
Order Code | Rako Wireless Lighting Keypad - RCP07-07 (colour option) |
| Package |
Unit | 1 |
Warranty | 12 Months |
Delivery Time | Made to Order Only - allow 2 - 3 weeks |
| Options |
| 4 colour finish choices |
| White Metal with Black Buttons |
| Brushed Stainless Steel with Black Buttons |
| Polished Stainless Steel with Black Buttons |
| Polished Brass with Black Buttons |
